Product Description

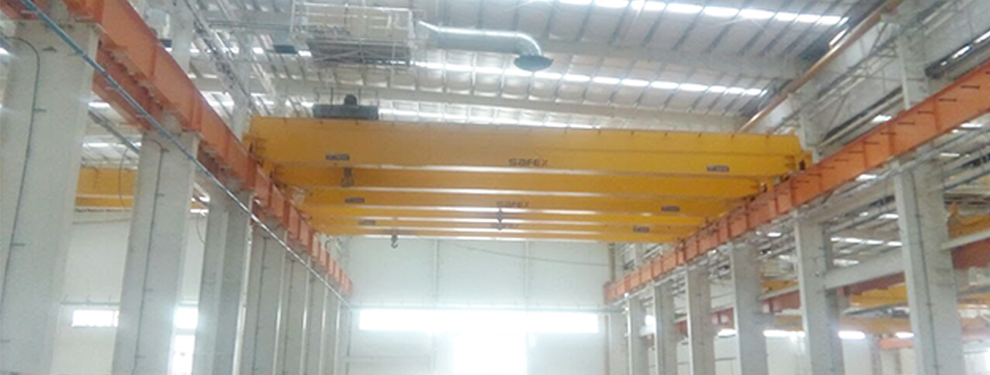

We are an illustrious manufacturer, exporter and supplier of highly efficient Overhead EOT Cranes that are used for handling heavy material. These cranes are manufactured using the best quality components and latest technology as per the set industry standards. Also, our quality control team these cranes thoroughly on various stringent parameters to ensure their high efficiency and long working life. We offer these Overhead Electric Overhead Traveling Cranes in various capacities at industry leading prices
Features:
- High performance
- Low maintenance
- Robustness
- Low fuel consumption
Standard Features:
- Safex cranes have high quality structural assembly which ensures acquiescence with IS:4301.
- Safex cranes have minimum maintenance and emergency interlude.
- Easily adjustable limit-switches.
- Load tested to 125% and certified by Safex from tests undertaken in our own workshops.
Range of Specifications:
| Safe Working Load | : | 500 kgs to 20,000 kgs. |
| Span | : | 3 mtrs to 30 mtrs. |
| Height of Lift | : | As per customer specifications |
| Class of Duty / Standards | : | Equivalent to M3,M5, M7, M8 as per IS:3177 / IS:807. |
| Speeds | : | Selected depending on client specifications / applications / shed dimensions. |
| Crane Control | : | From floor through pendant push buttons, Optionally through radio remote control / cabin with master control. |
| Drive System | : | Twin drive through squirrel cage induction geared motors with built-in fail safe brakes. |
| Motors | : | Squirrel cage induction hoisting motors with built-in fail safe brakes for hoisting, cross travel as well as long travel. Insulation class for all motors B/F. |
| Brakes | : | Built-in brakes for hoisting, cross travel and long travel motions. |
| Power Supply System | : | To hoist and cross travel through trailing cables / drag chain to crane through shrouded bus bars / trailing cable / MS angle iron conductors / Bare copper conductors (depending on customer's choice and application) |
