Product Description

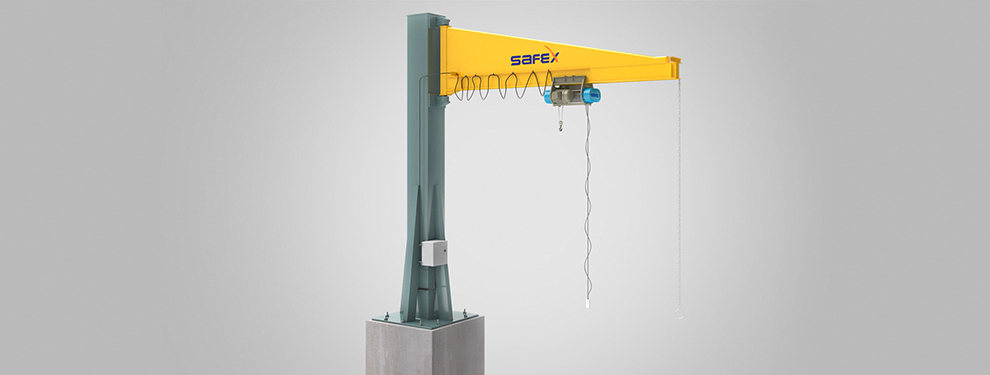

We hold proficiency in providing our customers large assortment of Portable Jib Cranes. This range is widely demanded by our valuable clients in various industries. These are designed and developed using superior quality basic materials and advanced technology in order to meet the international quality standards. Our assortment has gained a lot of appreciation from our clients owing to its outstanding performance, durability and dependability. Furthermore, this Portable Jib Cranes is available for our esteemed customers at an affordable rates.
Features:
- Operates like an arm in a work area, where it can function as a manipulator for positioning tasks. A hoist is attached to the arm for lifting Arm mounted on the wall or attached to a floor mounted support Arm can rotate 360. The hoist can move along the arm Jib cranes assist the staff and multiply human efforts, handling loads up to 5000 kgs. precisely and effortlessly. Jib cranes are useful especially for loading or unloading of work pieces on machine tools. These are also useful for loading or unloading from trucks. They can also become an inseparable part of a standalone workstation. Column mounted Jib Cranes are necessary when no other appropriate support near a workstation is available. Wall mounted Jib Cranes are ideal solutions for workstations located near walls or vertical structures.
Specifications:
| Safe Working Load | : | 250 kgs. to 5,000 kgs. |
| Radius | : | 2 mtrs to 6 mtrs |
| Height of Lift | : | As per customer specifications |
| Class of Duty / Standards | : | Equivalent to M3,M5, M7, M8 as per IS 3177 / IS 807 |
| Speeds | : | Selected depending on client specifications / applications / shed dimensions |
| Crane Control | : | From floor through Pendant Push Buttons, Optionally through Radio Remote Control |
| Drive System | : | Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes |
| Motors | : | Squirrel Cage Induction Hoisting Motors with built-in fail safe brakes for Hoisting and cross travel |
| Brakes | : | Built-in Brakes for Hoisting, Cross Travel and Rotational motions |
| Power Supply System | : | To Hoist and Cross Travel through Trailing Cables / Drag Chain To Crane through Shrouded Bus Bars / Trailing Cable |
